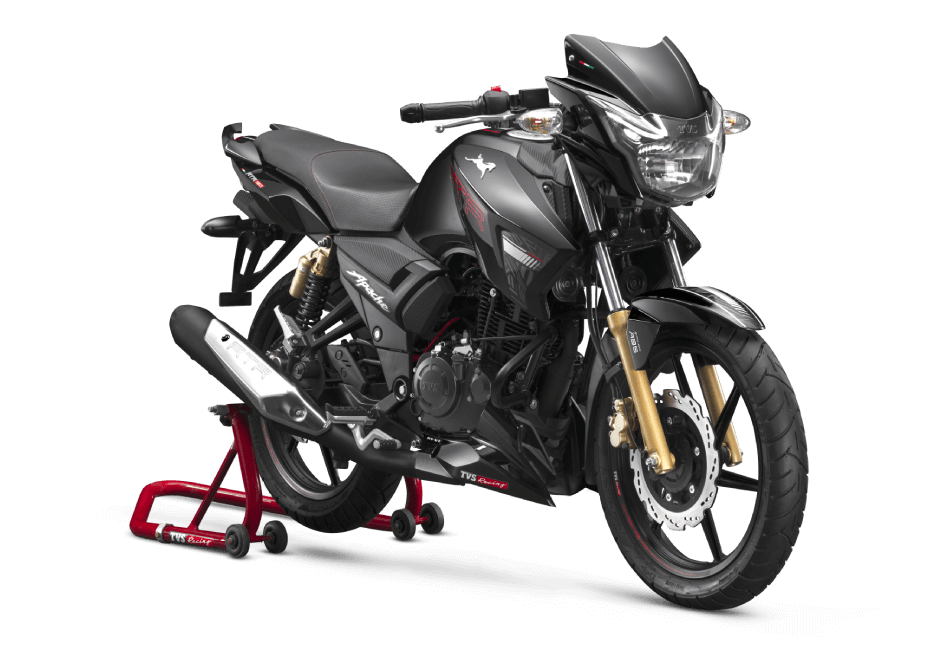

All New 2019 Apache RTR 180
with

Race Engineered Performance

features

colours

specifications

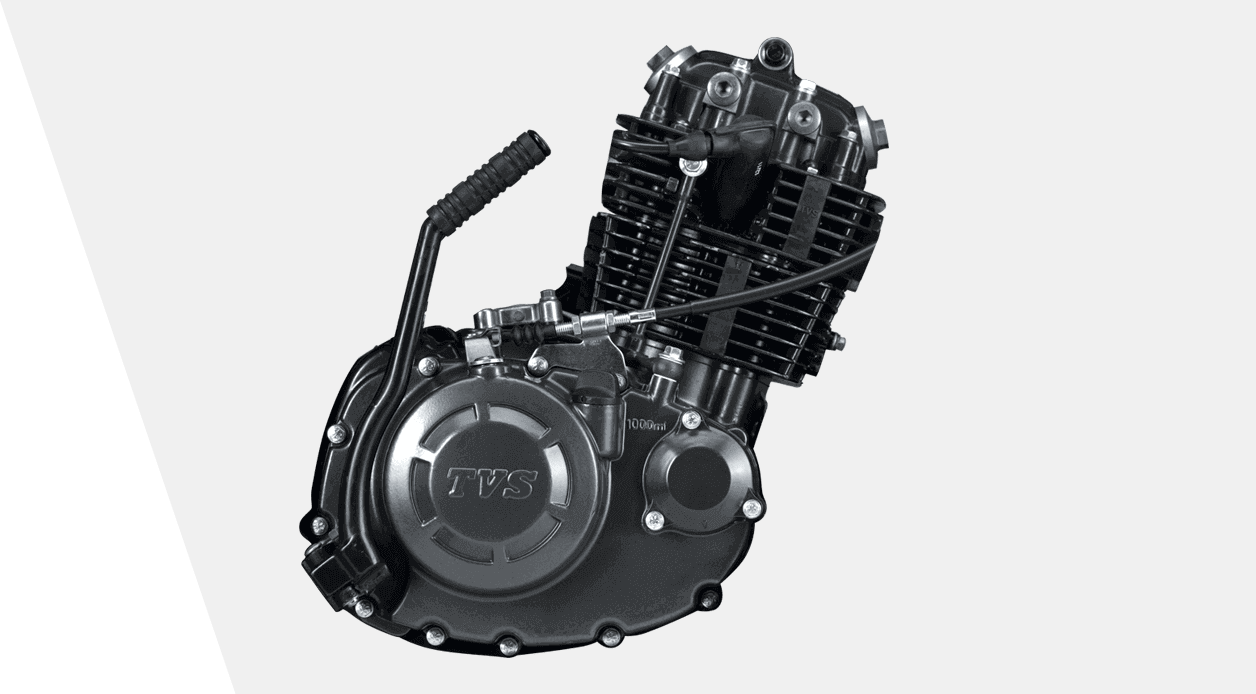

Type

SI, 4 stroke, Air cooled

Engine Capacity

177.4 cm3

No. of cylinder(s)

Single

Maximum Power

16.62 PS @ 8500 rpm /12.22 kW @ 8500 rpm (as per IS 10000 part IV)

Maximum Torque

15.5 ± 0.3 Nm @ 6500 ± 200 rpm

Bore x Stroke

62.5mm x 57.8mm

Compression Ratio

9.5 ± 0.5:1

Carburetor

UCAL BS-29

Bore to Stroke Ratio

1.08

Max. Speed

114 km/h

Valve(s) Per Cylinder

2 valves

Starting

Electric & Kick- Start

Idle Speed

1450 ± 200 rpm

Ignition

IDI- Dual Mode Digital Ignition

Power to Weight Ratio

89.2 kW/ton

Compression Ratio

9.5 ± 0.5 :1

Max Speed

114 km/h

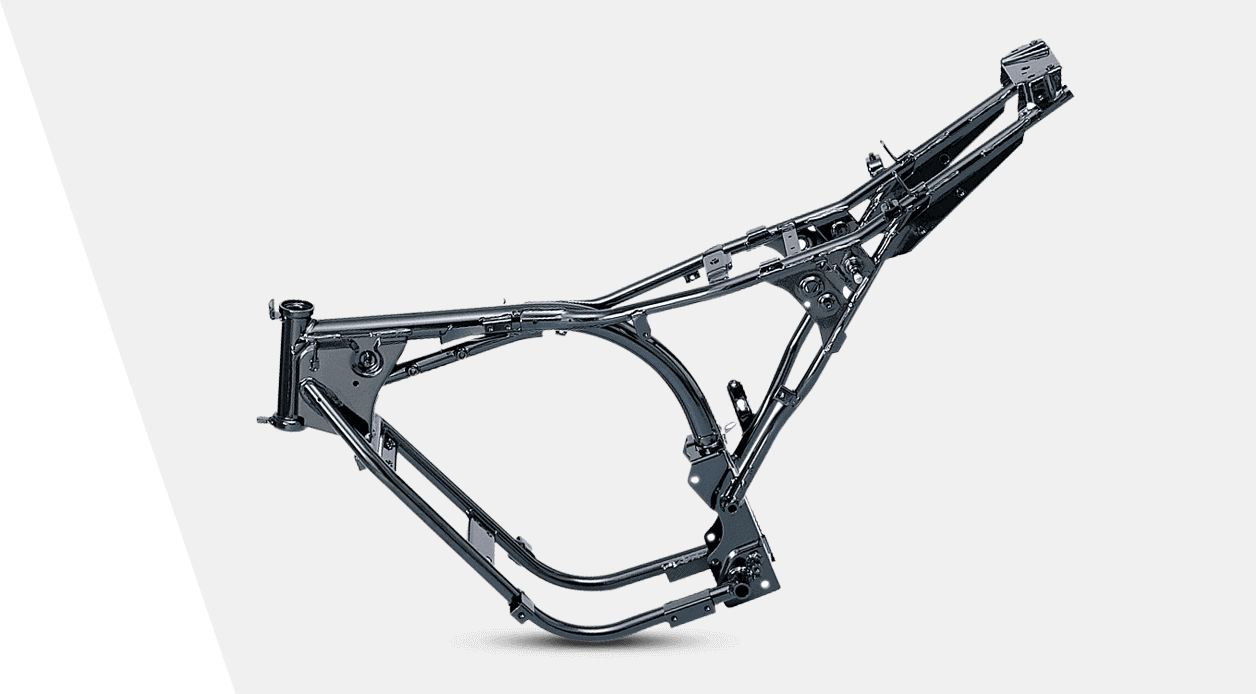

Type

Double Cradle Synchro STIFF

Front Suspension

Telescopic with Hydraulic Dampers (105 mm Stroke)

Rear Suspension

Monotube Inverted Gas-filled shox (MIG) with spring aid

Battery

12V, 9.0Ah/6 Ah

Headlamp*

35/35W Halogen HS1 with MFR Clear lens with Multi Face Reflector

Tail Lamp

0.5W LED- Twin triangle with prism on lens

Tail Lamp

0.5W LED- Twin triangle with prism on lens

*Headlamp comes with AHO only.

Tyre (front)

90/90-17 49P Tubeless

Tyre (rear)

110/80-17 57P Tubeless

Tyres

New Advanced Remora Tyres

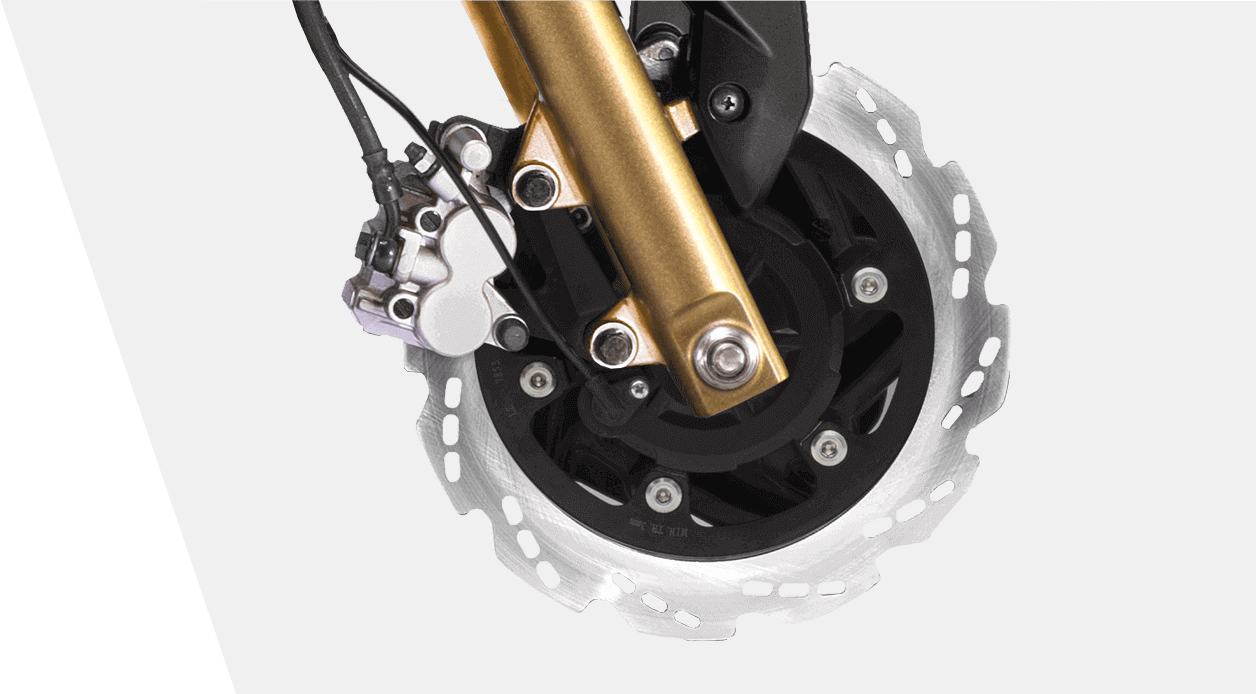

Front Brake

Disc (270 mm with Petal type)

Rear Brake

Disc (200 mm with Petal type)

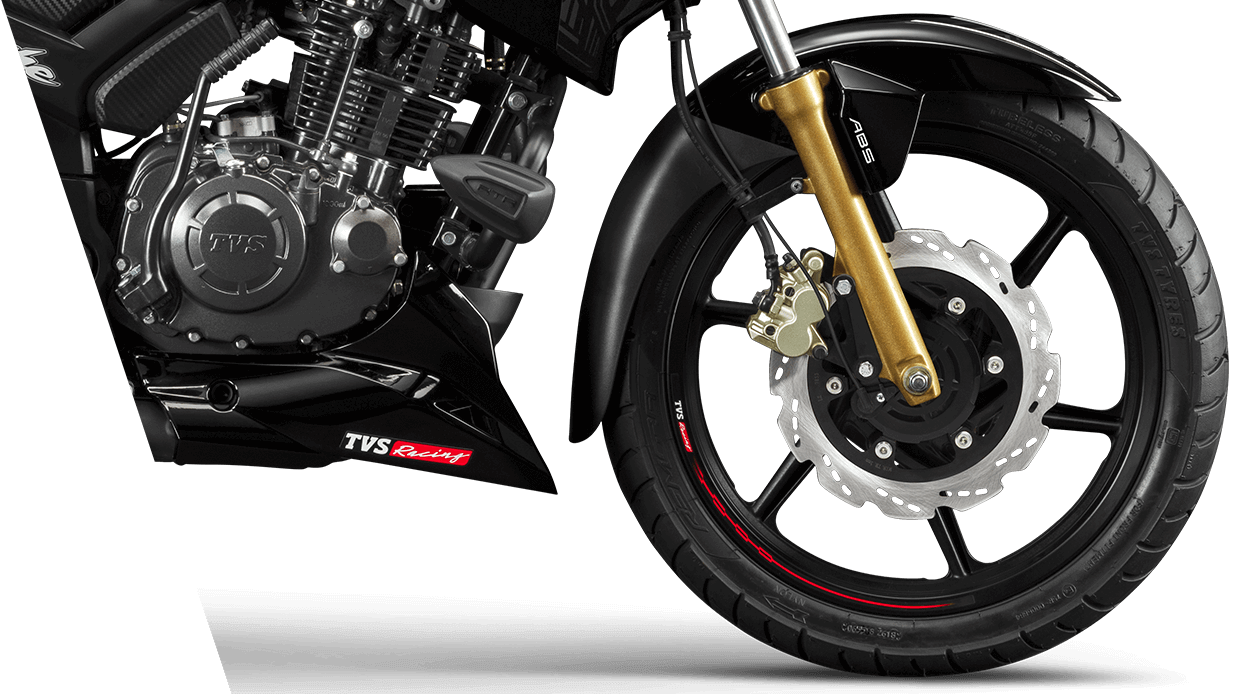

ABS

Single Channel Super-Moto ABS

Brake Fluid

DOT 3 / DOT 4

Height

1105 mm

Length

2085 mm

Width

730 mm

Wheelbase

1326 mm

Ground Clearance

165 mm

Saddle Height

790 mm

Kerb Weight with 90% Fuel & Tool kit

139 kg

Max. Payload

130 kg

Fuel Tank Material

Metallic

Capacity (l)

12 ± 0.5
