features

SINGLE CHANNEL SUPER-MOTO ABS

Control has never been this exhilarating, the Apache RTR 160 now comes equipped with technology to slice up the track. The Single Channel Super-Moto ABS Unit had been developed and tested on the track. The system provides the ultimate braking control while allowing sharp feedback. The precise system to keep your braking and cornering, razor-sharp.

RTR Over Square Engine

Experience scary pickup and blistering torque from the RTR over square race inspired engine. The short stroke set up ensures both faster pick up and top end revving capability for higher speeds.

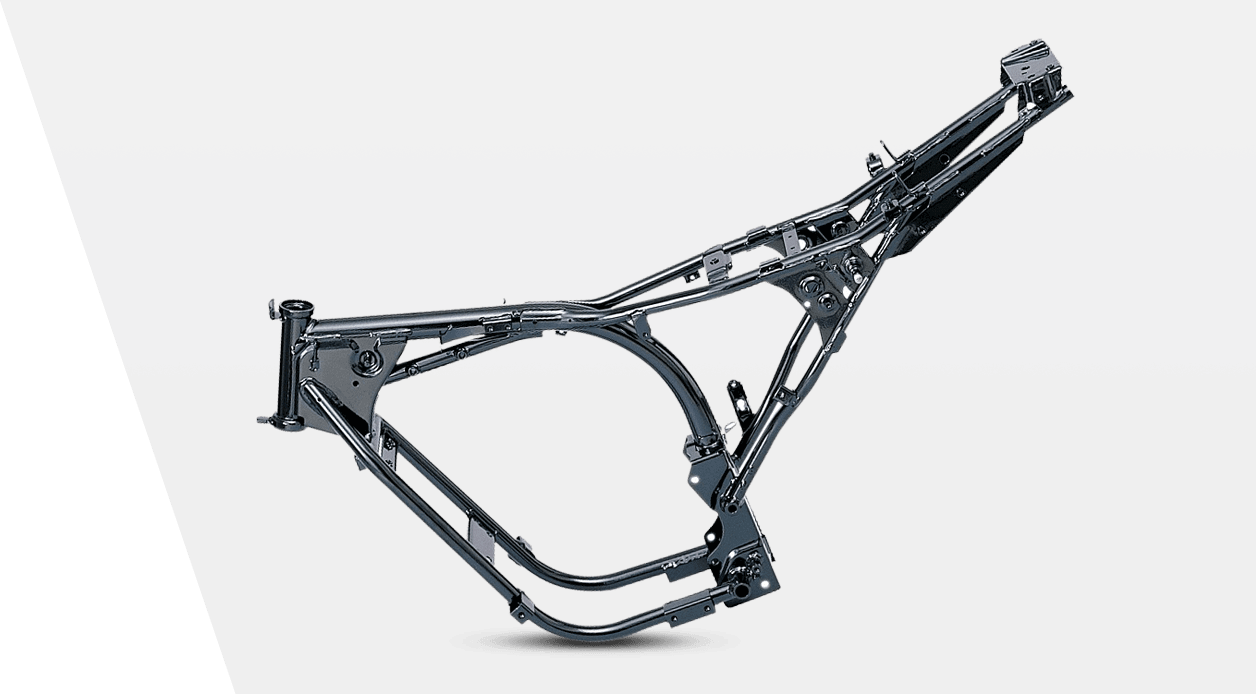

Synchronized Stiff Chassis

Synchronized stiff chassis developed in collaboration with TVS Racing ensures total control at high speeds and tight corners. It ensures stiffness for straight line performance and flex for aggressive cornering proposition.

Suspension

Agility is key while being aggressive, and our suspensions are perfect at giving you that swing motion. The front suspension is telescopic oil damped and the rear suspension is monotube inverted gas filled 5 step adjustable shocks with rectangular swing arm.

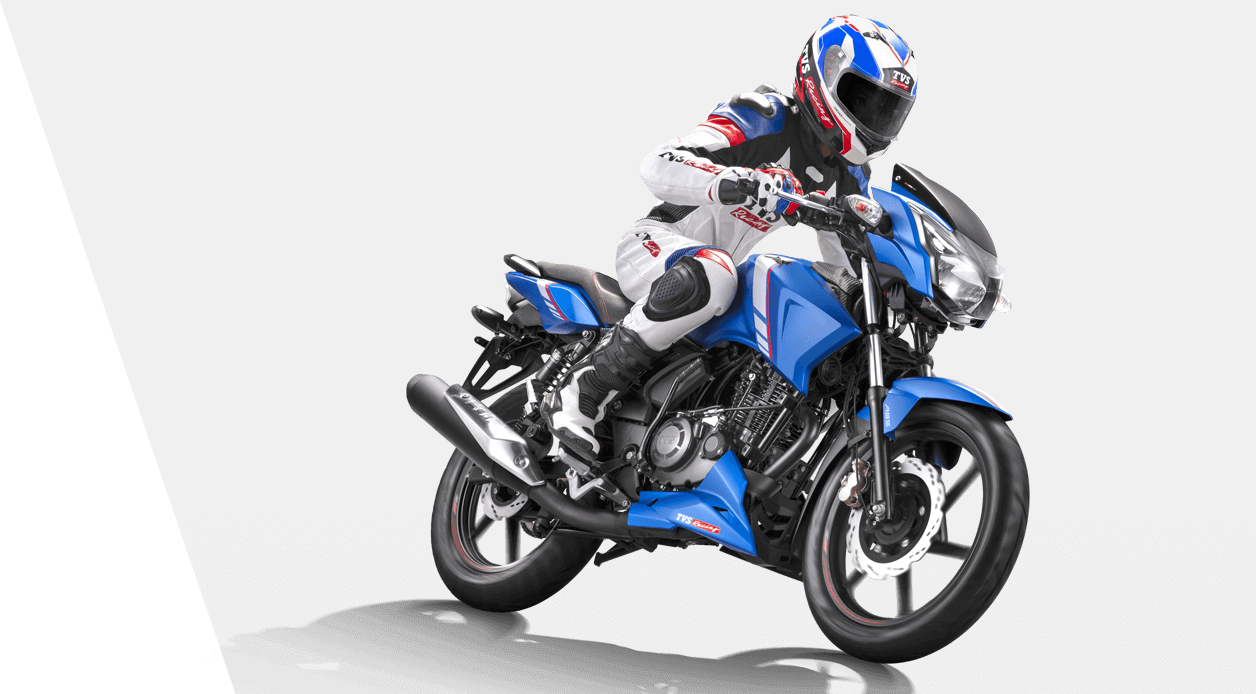

Riding Position

With adjustable split clip on handle bars, adaptable brake pedal and gear levers, the rider makes the best of the incredible riding experience.

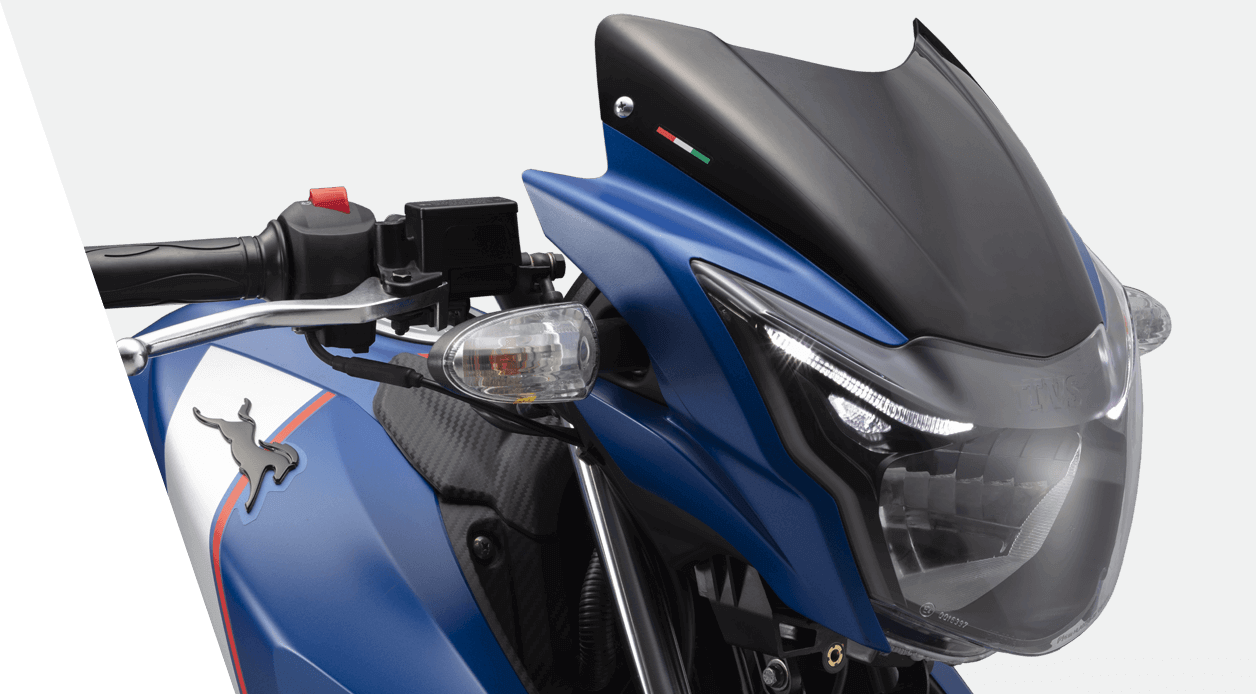

Beast-Inspired Headlamps

The LED light guide in the headlamp panel coalesces with the pilot lamps and produces an intense, raw, animalistic gaze, being Apache’s signature. This throws a far reaching beam on the road and makes for a very comfortable night-riding experience.

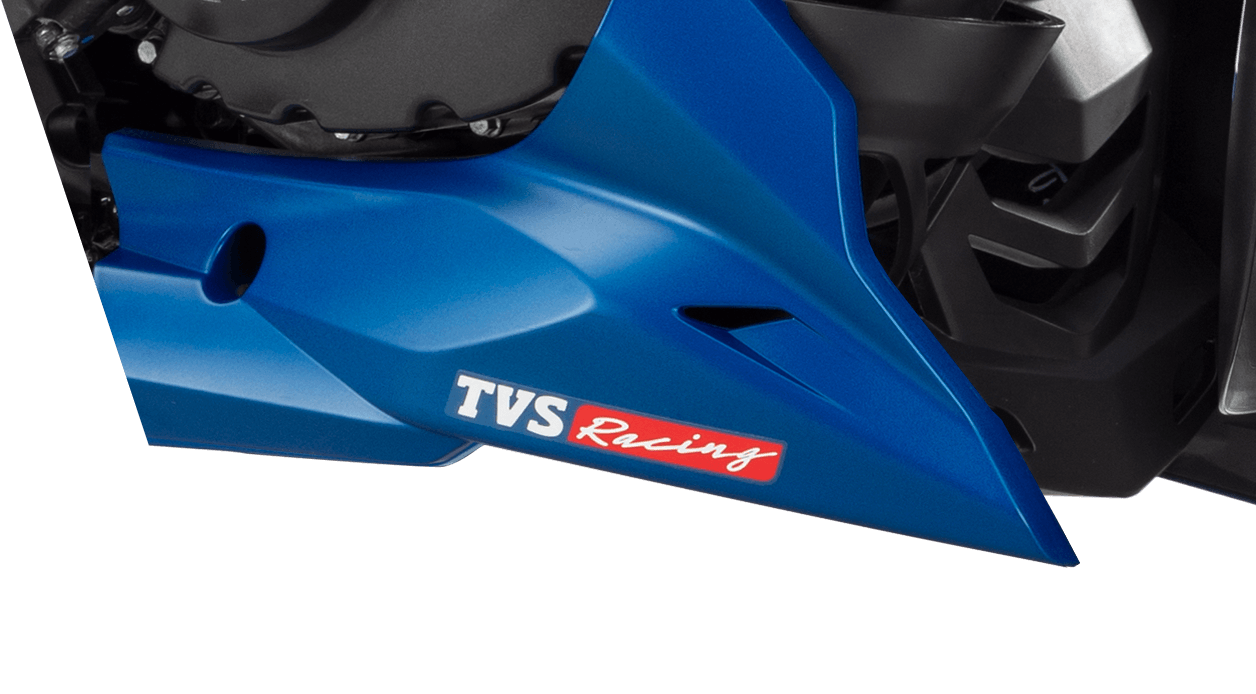

Muscled Engine Cowl

Perpetual motion styling. Aerodynamic razored design.

Led Tail Lamps

The sleek and aggressive tail lamps are dotted with an array of LED lights, which makes for a meaner and fiery racing icon. A signature visual impression that is instantly recogonisable.

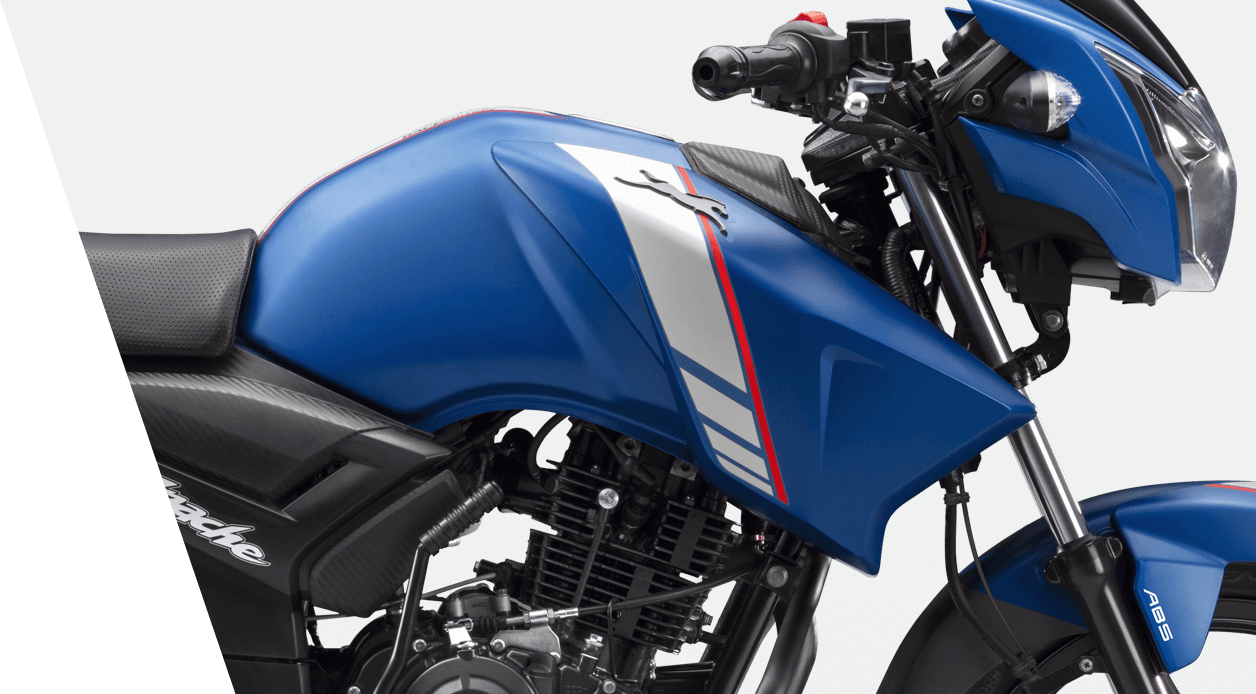

Intelligent Aerodynamics

Intelligent aerodynamics of the tank cowl aids performance and reduces engine heat by 10°C.

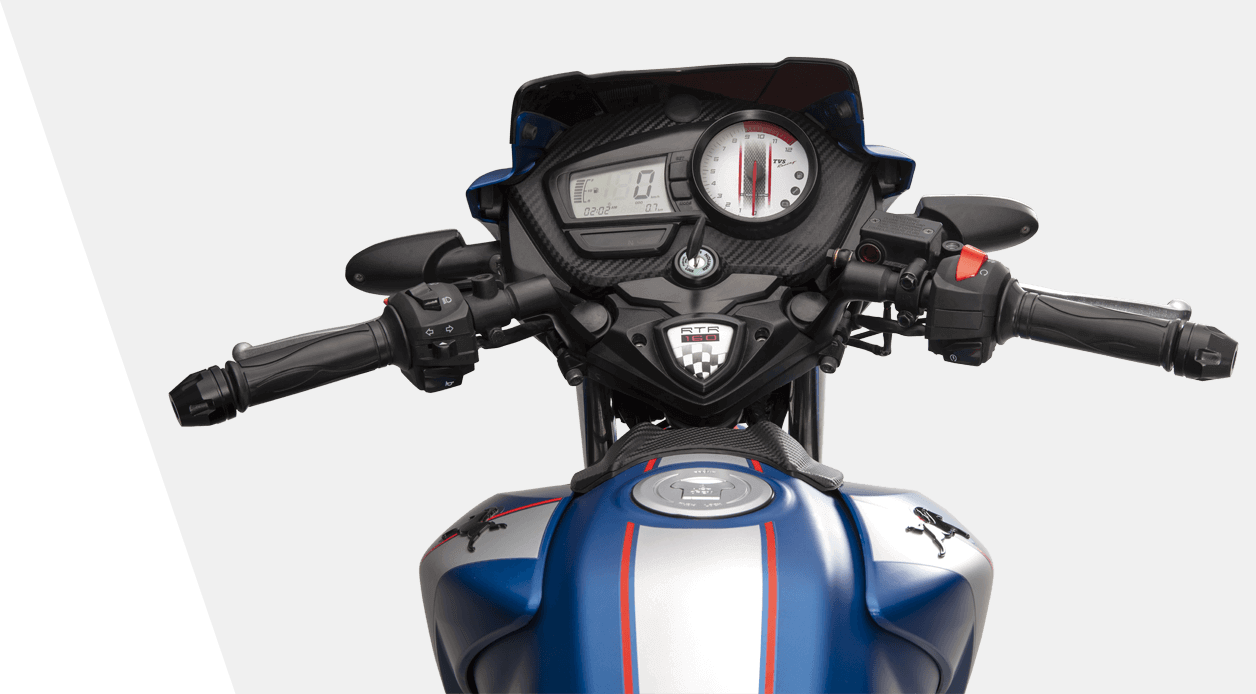

RACE-INSPIRED DIGITAL DISPLAY

New Nocturnal-Blue backlit display. Countdown-on-ignition speedometer. Race-inspired carbon fibre cues.

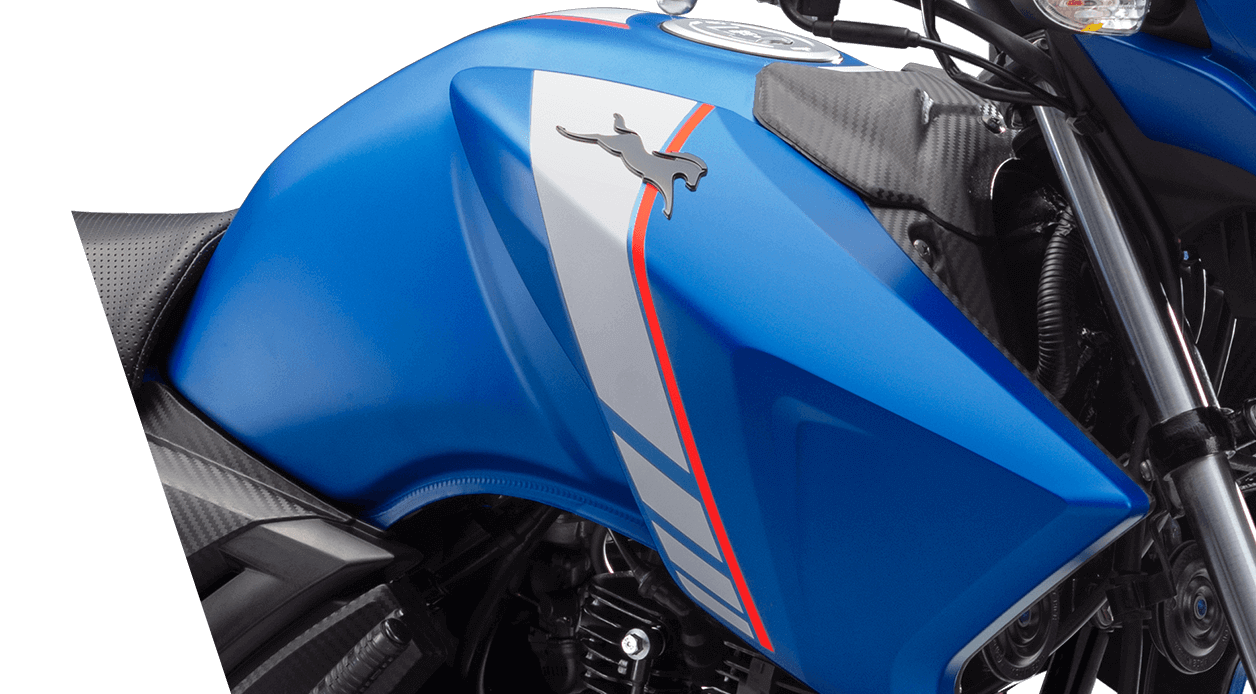

Tank Scoops

The beast breathes from within. The tank scoops enable a free inflow and outflow of air which heats and cools the powerful engine simultaneously, making it for an impeccable ride.

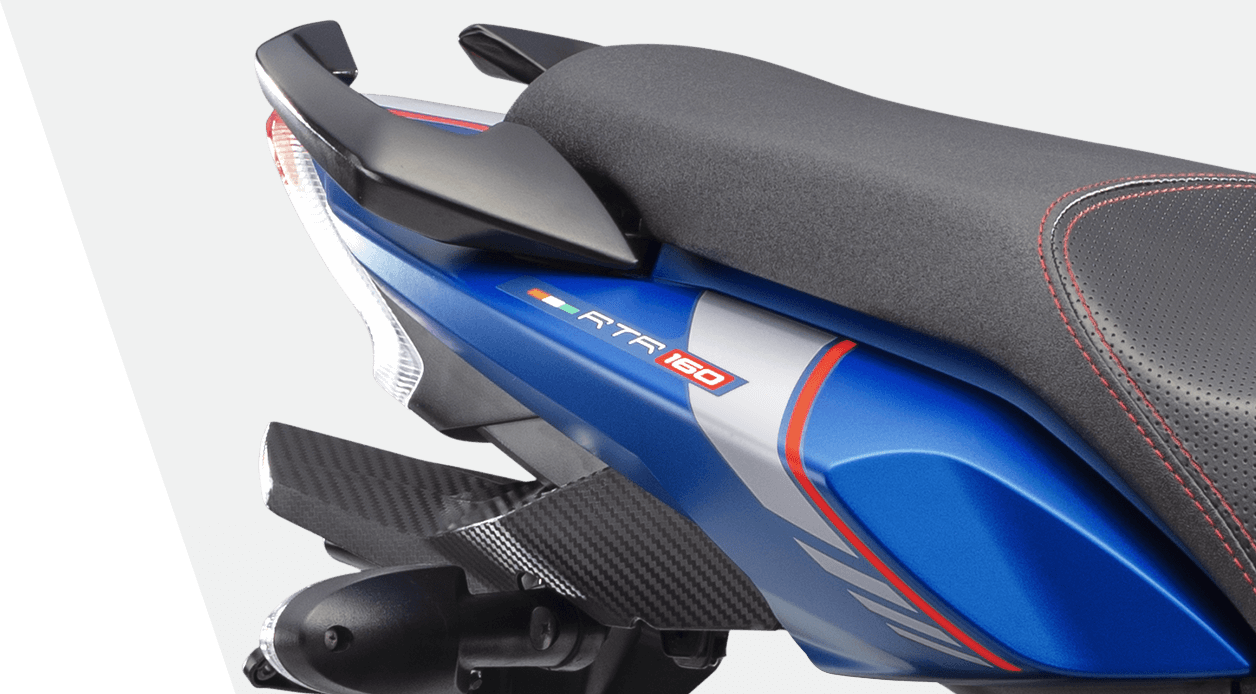

Muscled Tail Cowl

Radical race design. Lighter, chiselled tail.

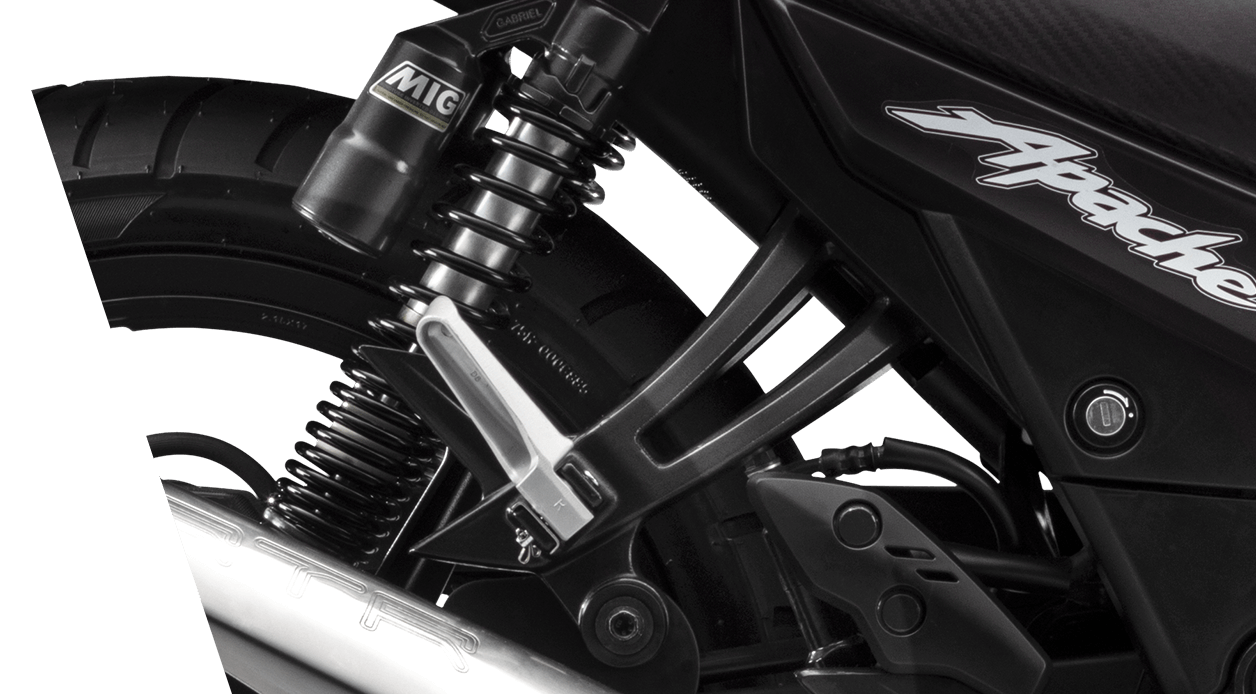

MIG - Monotube Inverted Gas

MIG - monotube inverted gas - filled 5 step adjustable shocks provide unrelenting strength without compromising performance.

Riding Position

With adjustable Split clip on handle bars, adaptable brake pedal and gear levers, the rider makes the best of the incredible riding experience.

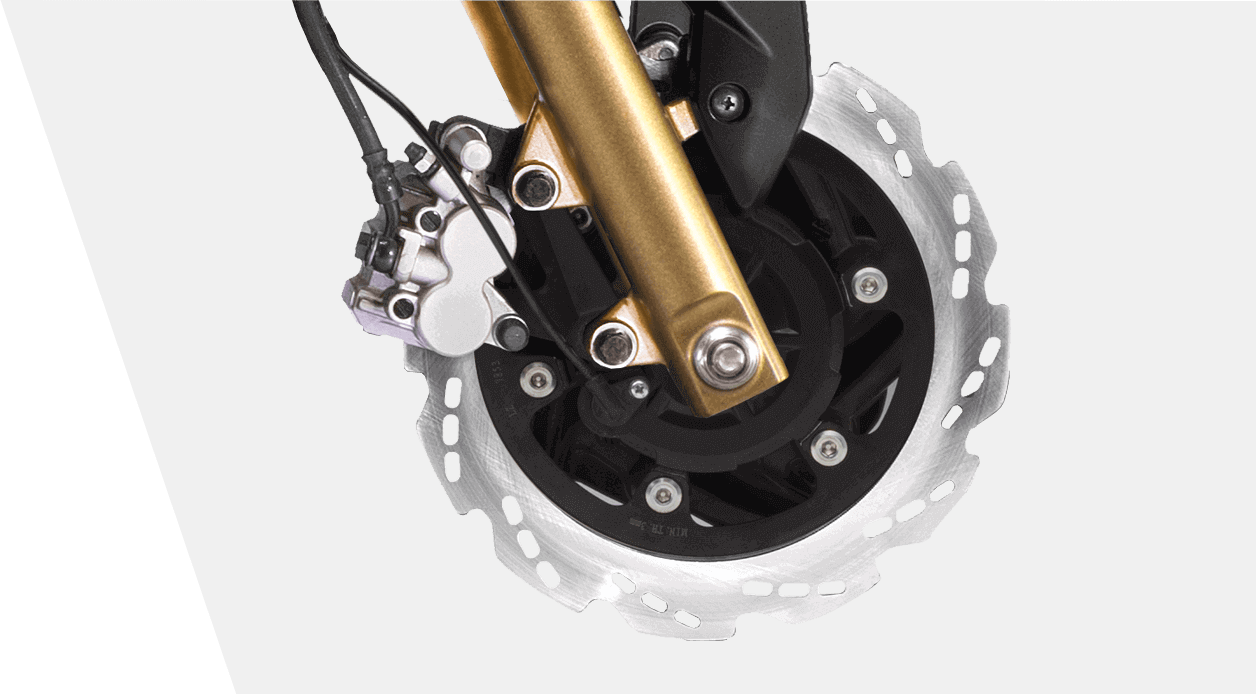

RAZOR SHARP CONTROL ABS

The Single Channel Super-Moto ABS Unit makes the machine notches up in safety with enhanced braking control. Developed and tested on the track, the system provides the ultimate braking control while allowing sharp feedback. The precise system to keep your braking and cornering, razor-sharp.

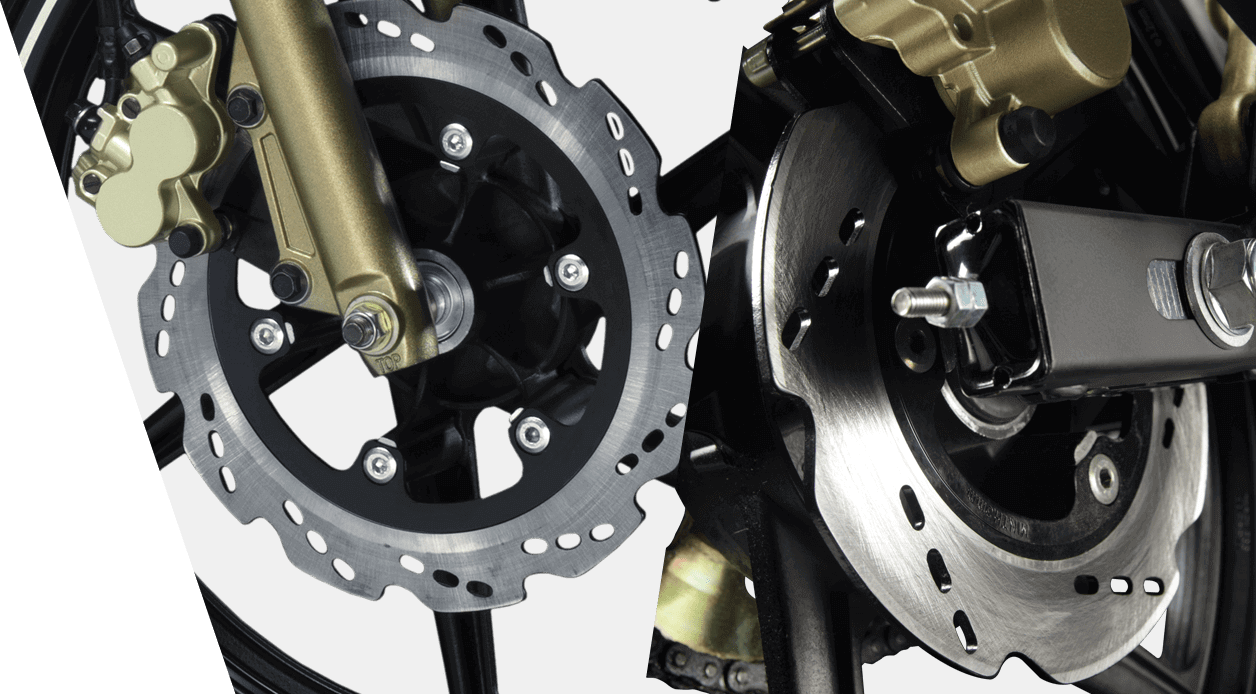

ROTO PETAL DISC BRAKES

Equipped with a 270mm disc on the front and 200mm at the rear, get complete control of the bike. The disc brakes also Enhances heat dissipation with its special roto petal design.

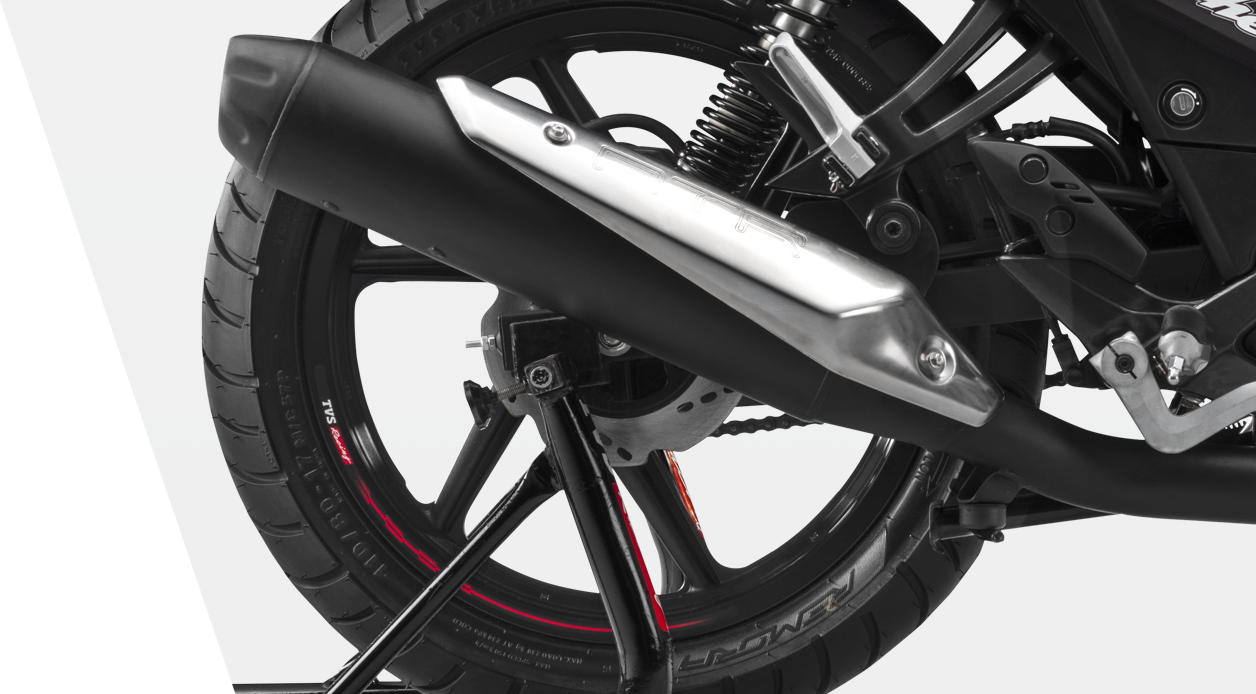

Remora Tyres

Remora tyres stick to the road with remora fish-like grip, resulting in improved acceleration and braking.

colours

Pearl White

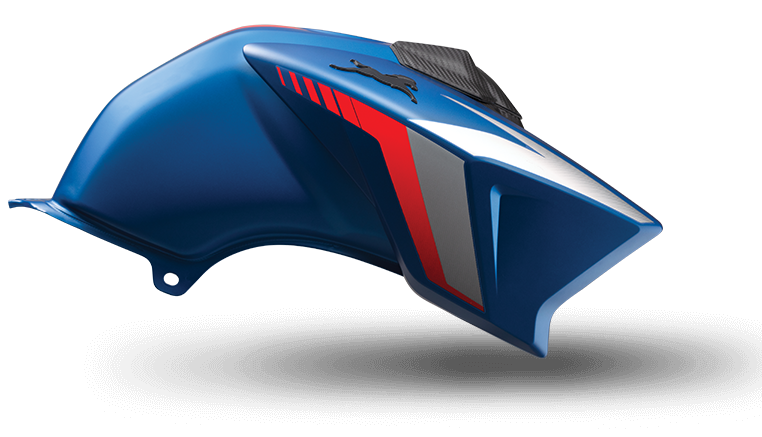

matte blue

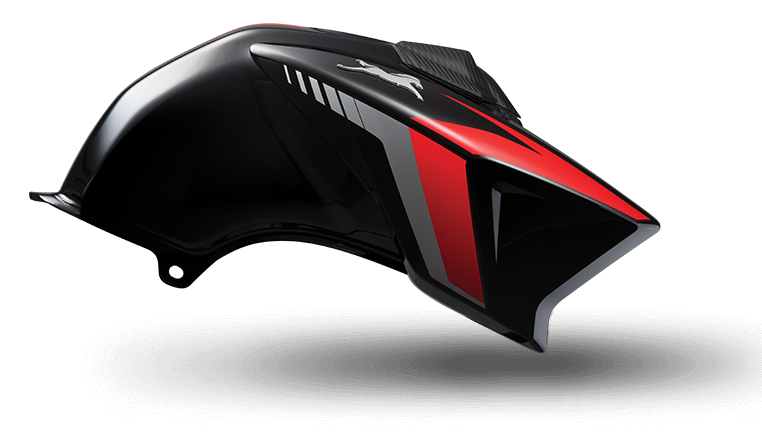

Gloss Black

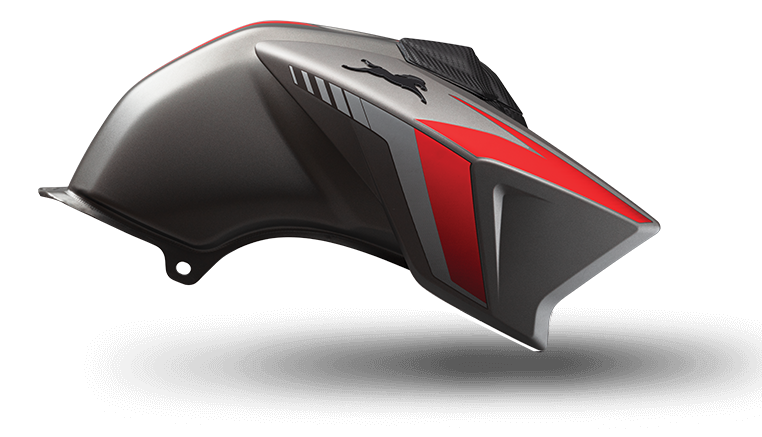

T Grey

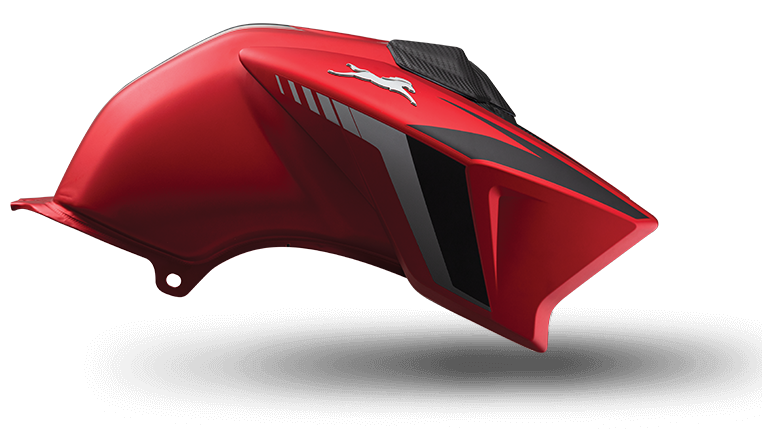

matte red

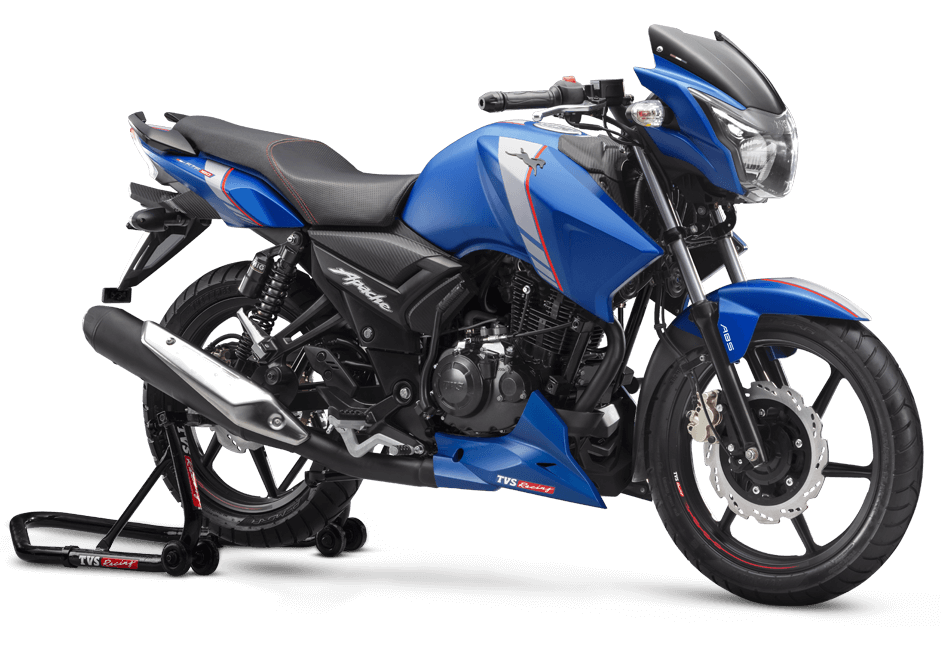

specifications

Type

SI, 4- stroke, Air- Cooled

Engine Capacity

159.7 cm³

No. of cylinder(s)

Single

Max. Engine output (kW @ rpm)

11.12 kW @ 8000 rpm (as per IS 10000 Part IV)

Max. Torque (Nm @ rpm)

13.03 Nm @ 6500 ± 300 rpm

Bore x Stroke

62 mm x 52.9 mm

Compression Ratio

9.5 ± 0.5:1

Carburetor

UCAL BS-26

Bore to Stroke Ratio

1.17

Valve train

2 Valves, Single cam

Starting

Electric & Kick- Start

Idle Speed

1450 ± 100 rpm

Ignition

IDI-Dual Mode Digital Ignition

Power to Weight Ratio

80.6kW per 1000kg

Max. Speed

110 km/h

Type

Double Cradle Synchro STIFF

Front Suspension

Telescopic with Hydraulic Dampers. 105mm Stroke

Rear Suspension

Monotube Inverted Gas-filled shox (MIG) with spring aid

Battery rating (Ah)

12V 9Ah/6 Ah

Alternator

AC Generator

Spark plug

BOSCH SINGLE ELECTRODE

Headlamp*

35/35 W Halogen HS1, Clear lens with MFR

Tail Lamp

0.5 W. LED-Twin triangle with prism on lens

Stop lamp

3.5 W

Fuse

10 A

* Headlamp comes with AHO only

Tyre (front)

90/90-17-49P Tubeless

Tyre (rear)

110/80-17 57P Tubeless

Front Brake (Disc)

270 mm

Rear Brake (Disc/Drum)

200 mm Disc/Drum 130 mm

ABS

Single Channel Super-Moto ABS

Height

1105 mm

Length

2085 mm

Width

730 mm

Wheelbase

1300 mm

Ground Clearance

165 mm

Kerb weight (with 90% fuel and tool kit)

138 kg Rear Drum/139 kg Rear Disc

Tank Material

Metallic

Capacity (l)

12 ± 0.5
